tubo do aço da precisão

Quick Detail: EN10305-4 Seamless precision Bending Steel tubes of Hydraulic Systems Size: 6-100mm Delivery condition: +N, +C,+LC, +SR, +A EN10305-4 E235 E355 Precision Steel Tubes Hydraulic Systems, EN10305-1 E235 E355 Hydraulic Precision Steel Tubes 1. Standard: EN10305-4 Cold drawn Precision Seamless Steel Pipes 2. Steel Grade: E215,E235,E355, other materials upon agreement with customers. 3. Production method: Cold drawing on the seamless steel tubes, to reach high

GB/T8713-1988 Hydraulic and Puematic Cylinder Precision ID Seamless Steel Tube Precision In Diameter Samless Steel Pipe For Fluid Power Cylinder as per standard GB T8713-88 Delivery condition:Cold working/Hard Cold working/Soft Annealing.or other treatment Cylinder tubes Matarial:10 20 35 45 16Mn Which you can follow standardGB699-88 to check the Chemical component and Mechanical properties. WT ID 1.5 2.0 2.5 3.0 3.5 5.0 6.0 7.5 10.0 12.5 15.0 20.0 OD 25 28 31 35 40 32 35 36

Cold drawn or cold-rolled precision seamless steel tubes Relative standard : GB/T222 permissible tolerance for chemical composition of steel products. GB/T223.5 Steel and iron-Determination of acid-soluble silicon and total silicon content-Reduced molybdosilicate spectro photometric method(GB/T223.5-2008,ISO 4829-1:1986,ISO 4829-2:1988,MOD) Mechanical properties Steel grade 10# 20# 35# 45# Q345B Steel grade deliver conditions +C +LC +SR +A +N Rm/Mpa A/% Rm/Mpa A/% Rm/Mpa ReH

Precision Seamless Cold Drawn Hydraulic Cylinder Steel Tubes EN10305-1 E235 E355 +Cc +LCc +SR +Ad +N NBK Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes Steel tubes for precision applications. Technical delivery conditions. Applications: Telescopic Cylinders/Hydraulic Cylinders/Auto shock absorber innder cylinder Size range: O.D.:6-650mm W.T.:1-35mm L:max12000mm Steel Grade C Si Mn P S Al Steel name Steel number max max max max max min E215 1.0212 0.10 0.05 0.70 0

for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube Products Description: for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube Quick Detail: Chemical Compositions: Standard Steel Grade C Si Mn P S EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025 E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025 E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025 DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St45 ≤0.21 ≤0.35 ≥0.40

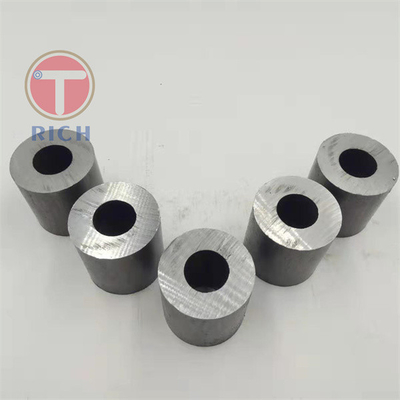

Hydraulic Precision Steel Tube ASTM A519 1010 1020 +SRA +N for Mechanical Engineering Hydraulic Oil cylinder Seamless Carbon and Alloy Steel Mechanical Tubing ASTM A519, is produced by cold drawing or cold rolling over mandrel and die, to keep tight tolerance and smooth roughness of both OD and ID, available steel grade will be carbon steel grade SAE1010, SAE1020, SAE1026, available alloy steel grade will be SAE4130, SAE4140 etc O.D.: 50-350mm W.T.: 0.5-35mm L: max12000mm 1.

DIN2391 Galvanized Steel Tube with High Precision Our major products include: cold drawn and cold rolled steel tube, high pressue fuel injection tube for diesel engine, black phosphated hydraulic tube, gavalnized precision seamless tube Precision Carbon Steel Tube Steel Grade: St35, St37, St52, other steel grade upon agreement. DIN Series cold drawn and cold rolled precision seamless tube. Galvanized precision seamless tube (Silver galvanizing, yellow galvanizing, olive green

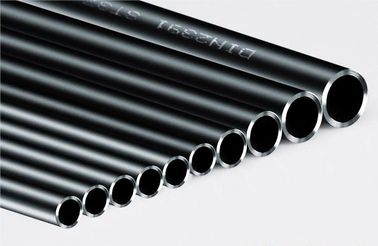

High Precision Black Phosphating Steel Pipes for Hydraulic Systems Quick Detail: Black Phosphated Hydraulic Tubes with High Precision EN10305-1, EN10305-4, DIN2391, E235, E355, ST37.0, ST44.0, ST52.0 Steel Pipes with high precision for Hydraulic Systems Black Phosphating Production process for steel precision tubes: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is realized with the

Products Description TORICH Welded Steel Tube 19.1mmX1.2mm HC340 HC420 Alloy Steel Tube for Automobile Parts High Strength Low Alloy Steel Material HC340/HC340LA, HC420/HC420LC etc Size OD: 10mm~50mm WT: 0.5mm~2.5mm Length: according to customer requirement Technique Cold Draw/Cold Rolled, ERW Tolerance It can be controled within OD/Thickness +/-0.1mm Application For Automobile Parts Test Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or
