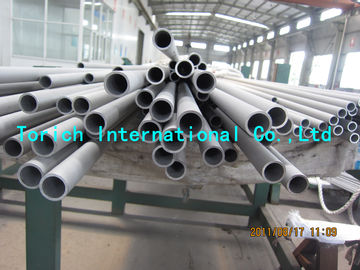

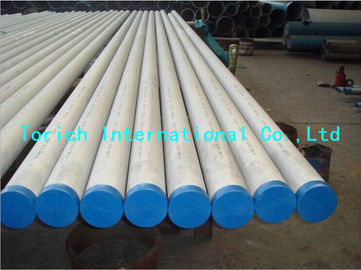

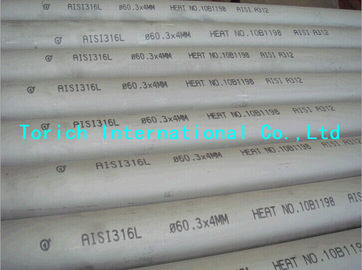

ISO aprovado 9001 dos tubos de aço inoxidável circulares sem emenda de uso geral
Detalhes do produto
aço inoxidável do tubo
,tubo de aço inoxidável do grande diâmetro
DIN 17456 Tubos circulares sem costura de aço inoxidável de uso geral
Esta norma, juntamente com a DIN 17440 DIN 17441, DIN 17457 e
DIN 1745 (edições de julho de 1985) substitui o DIN 17440, edição de dezembro de 1972
Aplicação:Para tubos e tubos circulares sem costura de uso geral
| Grau | Materiais | Ensaio de tração MPa ou N/mm2 | Remakes (Similar ao JIS) | Possibilidade Temperatura | |
| Ponto de rendimento mínimo | Resistência à tração | ||||
| X6CrTi12 | 1.4512 | 190 | 390~560 | - |
|
| X6CrAl13 | 1.4002 | 250 | 400 ~ 600 | SUS405TP |
|
| X5CrNi1911 | 1.4006 | 250 | 450 ~ 650 | - |
|
| X6Cr17 | 1.4016 | 270 | 450 ~ 650 | - |
|
| X6CrTi17 | 1.4510 | 270 | 430 ~ 600 | - |
|
| X5CrNi1810 | 1.4301 | 195 | 500 a 720 | - |
|
| X2CrNi1911 | 1.4306 | 180 | 460 ~ 680 | - |
|
| X2CrNiTi1810 | 1.4311 | 270 | 550 a 760 | - |
|
| X6CrNiTi1810 | 1.4541 | 200 | 500 ~ 730 | - |
|
| X5CrNiNB1810 | 1.4550 | 205 | 510~740 | - |
|
| X5CrNiMo17122 | 1.4401 | 205 | 510 ~ 710 | SUS316TB |
|
| X2CrNiMo17132 | 1.4404 | 190 | 490 ~ 690 | SUS316HTB |
|
| X6CrNiMoTi17122 | 1.4571 | 210 | 500 ~ 730 | SUS321TB |
|
| X2CrNiMoN17133 | 1.4429 | 295 | 580 ~ 800 | - |
|
| X2CrNiMo18143 | 1.4435 | 190 | 490 ~ 690 | - |
|
| X5CrNiMo17133 | 1.4438 | 205 | 510 ~ 710 | - |
|
| X2CrNiMoN17135 | 1.4439 | 285 | 580 ~ 800 | - |
|
-
Peças de automóvel ASTM A513 que laminam os tubos de aço soldados com produção dos DOM
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
tubo de aço sem emenda brilhante do recozimento do diâmetro de 25mm para sistemas hidráulicos
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Tubo de aço fosfatando preto sem emenda da precisão para sistemas hidráulicos
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Tubos de aço galvanizados sem emenda DIN2391 EN103052 ST35.0 ST37 da precisão
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
