Tubo de aço inoxidável

304 316 Medical Grade Hospital Needle Stainless Steel Tube Capillary Tube A tube with a very thin inner diameter is called a capillary. It usually refers to a thin tube with an inner diameter of 1 mm or less. It is called a capillary because some of its diameter is as thin as hair. At present, it can be seen in medicine and building materials. Commodity name Small diameter bright annealing seamless stainless steel capillary tube Process method Cold Rolled/Cold Drawn Stainless

304 316 Stainless Steel Piston Rod For Hydraulic Cylinders And Pneumatic Cylinders Stainless steel piston rod is mainly used for hydraulic and pneumatic, engineering machinery and automobile manufacturing. The piston rod is processed by rolling. Due to the residual compressive stress on the surface layer, it is helpful to close the small cracks on the surface and hinder the expansion of erosion. So as to improve the corrosion resistance of the surface, delay the generation or

Steel 304 Pipe SS Pipes Stainless pipe Astm A249 Boiler Tubes Seamless tubes for boilers are called boiler tubes for short. China's boilers are divided into domestic boilers,general industrial boilers, locomotive boilers and thermal power boilers (hereinafter referred to as thermal power boilers). According to its steam pressure, thermal power boiler is divided into low pressure, medium pressure, high pressure, ultra-high pressure, subcritical pressure, supercritical pressure

304 Sanitary Food Grade 316 for Capillary Tube Stainless Steel Tube 1.Quick Details: Name Sanitary Food Grade 316 for Capillary Tube Stainless Steel Tube Type Stainless Production Seamless Application Decoration, medicine industry, food industry,etc OD 1-10mm WT 0.5-2mm Length 10-80mm Surafce Bright Package Packing in wovan bags, wooden cases, or according to requirement 2.Product Details: (1)Characteristic: It has good flexibility, corrosion resistance, high temperature

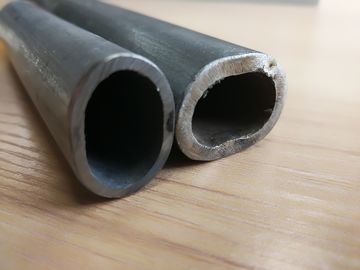

304 304L 316 316L 25mm Diameter Shaped Stainless Steel Pipe​ Special shaped seamless steel pipe is the general name of seamless steel pipe with other section shapes except circular pipe. According to the different shape and size of steel pipe section, it can be divided into equal wall thickness special-shaped seamless steel pipe (code D), unequal wall thickness special-shaped seamless steel pipe (code BD) and variable diameter special-shaped seamless steel pipe (code BJ).

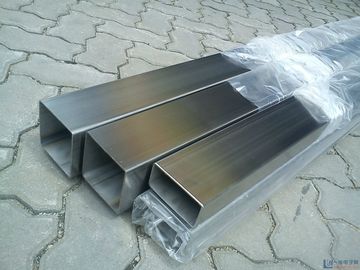

Stainless Steel Grade 316 Stainless Steel Tube Classification of stainless steel pipe: stainless steel seamless steel pipe and stainless steel welded steel pipe (seamless steel pipe) are two basic categories. According to the outer diameter shape of steel pipe it can be divided into circular pipe and special- shaped pipe.Circular steel pipe is widely used, but there are also some special-shaped steel pipes such as square, rectangle, semicircle, hexagon, equilateral triangle

T22 T5 T12 ASTM A213 Steel Tube in Boiler Heat Exchanger Industry 1.Chemical components: C Mn P≤ S≤ Si Cr Mo T5 ≤0.15 0.3-0.6 0.025 0.025 ≤0.5 4-6 0.45-0.65 T11 0.05-0.15 0.3-0.6 0.025 0.025 0.5-1 1-1.5 0.44-0.65 T12 0.05-0.15 0.3-0.61 0.025 0.025 ≤0.5 0.8-1.25 0.44-0.65 T22 0.05-0.15 0.3-0.6 0.025 0.025 ≤0.5 1.9-2.6 0.87-1.13 2.Mechanical Properties: Tensile Strength Yield Strength Elongnation T12 415 MPa 220 MPa 30% T5 415 MPa 205 MPa 30% T11 415 MPa 205 MPa 30% T22 415 MPa

304​ 316 STAINLESS STEEL CAPILLARY TUBE CNC MACHINERY PARTS Stainless Steel: * 1.4301 / X5CrNi18.10(V2A) * 1.4404 / X2CrNiMo17-12-2 (V4A) * 1.4571 / X6CrNiMoTi17-12-2 * 1.7131 / 16MnCr5 * 1.7225 / 42CrMo4 Custom stainless steel alloys are also available Dimension Range (mm) Fine (F) +/- Medium (M) +/- Coarse (C) +/- Very Coarse (V) +/- .5-3 .2 .2 .4 .4 3-6 .5 .5 1 1 6 1 1 2 2 Applications: 1.All kinds of metal parts processing; 2.Sheet metal, box, metal structure; 3.Mold

304​ Needle Medical Use Stainless Steel Capillary Tube Syringe Needle Tube Outer diameter : φ 0.. 3mm to φ 20.0mm Thickness φ 0.06mm to φ Any specification of 2.0mm can be produced. stainless steel precision square capillary tube φ 2.0 * 2.0mm to φ 10.0 * 10.0mm, Advantages: 1. flexible with good valgus. 2. suitable for punching, flattening, expanding, stretching and bending. Applications: 1. Electronic instruments and capillary tubes for electronic components; 2. Medical
