Tubo do aço dos DOM
Tubo sem emenda do aço da precisão E235 do recozimento brilhante
Din 2391 High Pressure Bright Annealing Seamless Precision E235 Steel Tube 1. DIN2391 high precision bright seamless steel pipe Made of Baosteel's high-quality carbon steel material, after precise drawing, non-oxidative bright heat treatment (NBK state), non-destructive testing, the inner hole of the steel pipe is subjected to high-pressure washing and pickling, the inner and outer walls of the steel pipe are treated with anti-rust oil, and both ends are sealed as Dust-proof
O tubo de aço sem emenda ASTM A513 dos 1026 1020 4130 DOM do carbono dilui a parede de alta elasticidade
Products Description TORICH High Tensile Thin Wall 34mm MS 1010 Plastic End Caps for AISI 1020 46mm 4130 Carbon Seamless Mild ASTM A513 1026 DOM Tube Quick Detail: Honed steel pipes is used for hydraulic Cylinders and oil and pnuematic Cylinders.with material E155 E195 E235 E275 E355. Raw material steel pipes as per stamdard EN10305-2, Cold drawn ERW steel pipes , Cold drawn seamless pipes. Feature 1.Honed Hydraulic Cylinder Tube is made from DOM steel tubes,With high
Espessura de parede de aço soldada dos tubos 35mm dos DOM BS6323-6 tubos de aço sem emenda
Products Description BS6323-6 35mm Wall Thickness Seamless Welded Steel Tubes DOM Steel Tubes Machining Material CEW1a CEW2a CEW3a CEW4a CEW5a Size WT: 1-35mm; OD: 6-350mm; Length: max 12m Production Method Seamless Cold Drawing Or Cold Rolling/Electric Resistance Welded Applications For Auto Industry / For Machinery Use/mechanical And General Engineering Purposes Test Flattening test, Drift expanding test, Leak tightness test. Method of Manufacture: The tubes are manufacture

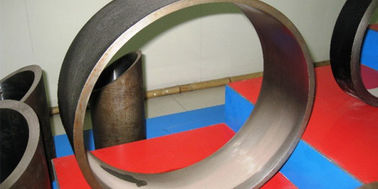

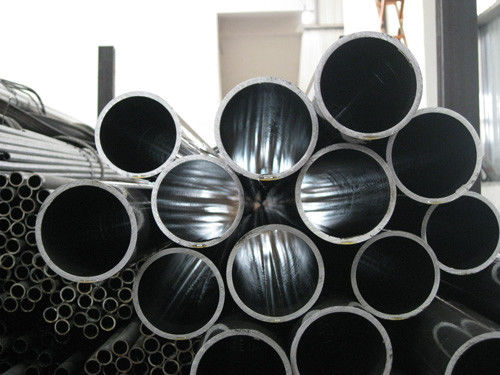

Tubo de aço estirado a frio dos DOM, precisão soldada da motocicleta EN10305-2 tubo de aço
Product Description Torich Motorcycle Steel Tube EN10305-2 Welded Precision Cold Drawn DOM Steel Tube EN10305-2 DOM Pipe for Motorcycle Shock Absorbers Basic detail information 1. Grade:E155 E195 E235 E275 E355 2. Size: O.D.:6-350mm W.T.:1-35mm L:max12000mm 3. Standard: EN10305-2 4. Certification: ISO9001, ISO14001,TS16949 5.Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcycle shock absorber Auto shock absorber inner cylinder/Telescopic Cylinders 6
Tubulação de aço redonda estirada a frio de aço 1020 1030 do tubo ASTM A512 dos DOM do carbono
Products Description: ASTM A512 1020 1030 Cold Drawn Steel Pipe Buttweld Carbon Steel Tube Steel Grade: 1008, 1010, 1012, 1015 etc Size Range: OD: 5-88.9mm WT: 0.89-12.7mm Length: max12000mm Our regularproduction size 25.4*2.11mm, 50.8*2.11mm Chemical Component: Steel Grade C Mn P max S max 1008 ≤0.10 0.30-0.50 0.040 0.045 1010 0.08-0.13 0.30-0.60 0.040 0.045 1012 0.10-0.15 0.30-0.60 0.040 0.045 1015 0.13-0.18 0.30-0.60 0.040 0.045 1016 0.13-0.18 0.60-0.90 0.040 0.045 1018 0
Tubo de aço padrão Od sem emenda dos DOM Bs6323-4 5 - 220 milímetros com forma redonda
TORICH BS 6323-4 CFS 3/ CFS 3A/ CFS 4 Round Seamless DOM Steel Tube Product Description: OD: 5-220 mm WT: 0.5-25mm Length: Max 7000mm Delivery Condition: 1 BK Cold finished(hard) 2 BKW Cold finished(soft) 3 GBK Annealed 4 NBK Normalized 5 GZF Annealed (including de-scaling) 6 NZF Normalized (including de-scaling) DOM Steel Tube Production Process: Raw material → Incoming inspection → Cutting → Heating → Piercing → Hammering →Pickling → Cold-drawing → Heat treatment → Physical

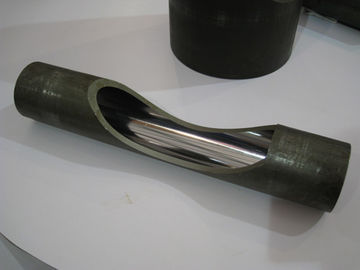

Resistência elétrica soldada tirada sobre a tubulação de aço do Mandrel com acabado a frio
TORICH BS6323-6 Cold Finished Electric Resistance Welded DOM Steel Tube Product Description: Standard: BS6323-6 Size Range: OD: 6-350mm WT: 1-35mm Length: max 12000mm Steel Grade: CEW1a CEW2a CEW3a CEW4a CEW5a Delivery Condition: 1 BK Cold finished(hard) 2 BKW Cold finished(soft) 3 GBK Annealed 4 NBK Normalized 5 GZF Annealed (including de-scaling) 6 NZF Normalized (including de-scaling) Product Pictures: Packing: Characteristic: Good concentricity Good OD and ID tolerance
Forma redonda de aço sem emenda do SAE J526 do tubo dos DOM do baixo carbono para automotivo
TORICH SAE J526 DOM Low-Carbon Seamless Steel Tube Product Description: SAE J526 DOM Carbon Seamless Steeel Tube: Products Description: 16X1 20X2 DIN2391 ST35 CDS DOM Steel Tube DIN2393 ST35 CDW DOM Steel Tube DOM Steel Pipe Steel Grade/Steel Material: E155,E195,E235,E275,E355 Delivery Condition: BK, BKW, BKS, GBK, NBK Size Range: OD: 4.0-420mm WT:0.5-50mm Length: max 12000mm Our regularproduction size 60x50 42x3.2mm Characteristic: Good concentricity Good OD and ID tolerance
Cilindro de aço soldado 205mm Ros do tubo do cilindro hidráulico da tubulação dos DOM de En10305 A519 E235 E355 100mm
EN10305 ASTM A519 Grade E355 DOM Cold Drawn Welded Tube for Hydraulic Cylinder ID : 30--250mm ID Tolerance : H8 H9 Grade: 20# 45# 16Mn 25Mn 27SiMn E355 SAE1026 Standard: GB/T8713 GB/T3639 DIN2391 EN10305 ASTMA519 Range: 30-300mm Length: 11m(max) Tolerance on Wall Thickness: Diameter: >40 +/-0.2mm Diameter: 40 100 +/-0.5mm Processing : cold drawn cold rolled honed SRB Burnish Delivery condition of hydraulic cylinder tube: 1.NBK(+N) of hydraulic tube after cold forming,
